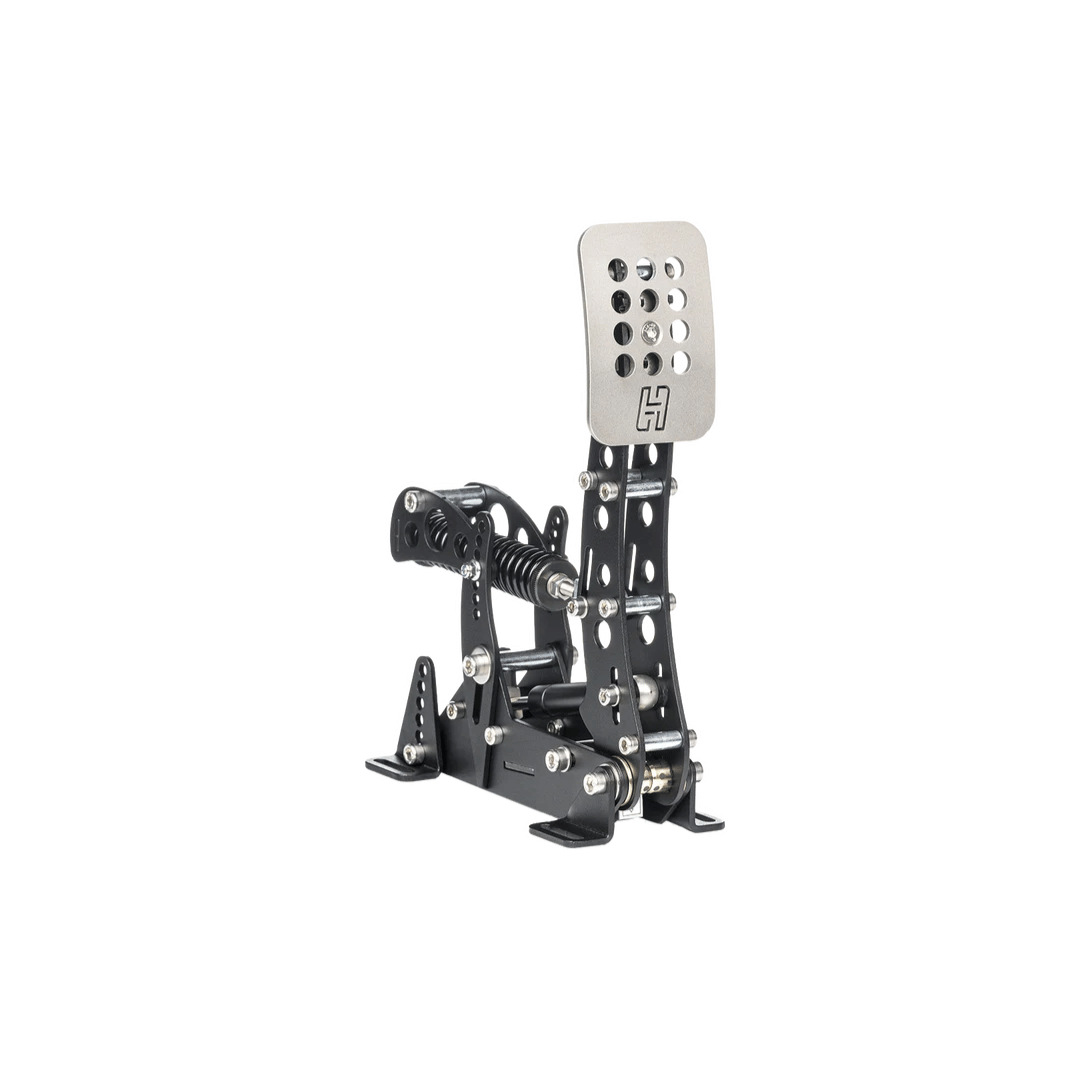

Heusinkveld Sim Pedals Ultimate+ are hydraulically damped load cell pedals made for professional simulators and motorsport training. With up to 140 kg of brake force on a 200 kg load cell, they recreate the heavy, high-pressure braking of Formula, LMP and GT3 cars, as close to a real race car pedal box as a home rig gets.
-
Load cell brake: up to 140 kg of force, tuned with 9 interchangeable springs
-
Hydraulic damping: 2-way on the brake, 1-way on the clutch (3-pedal set)
-

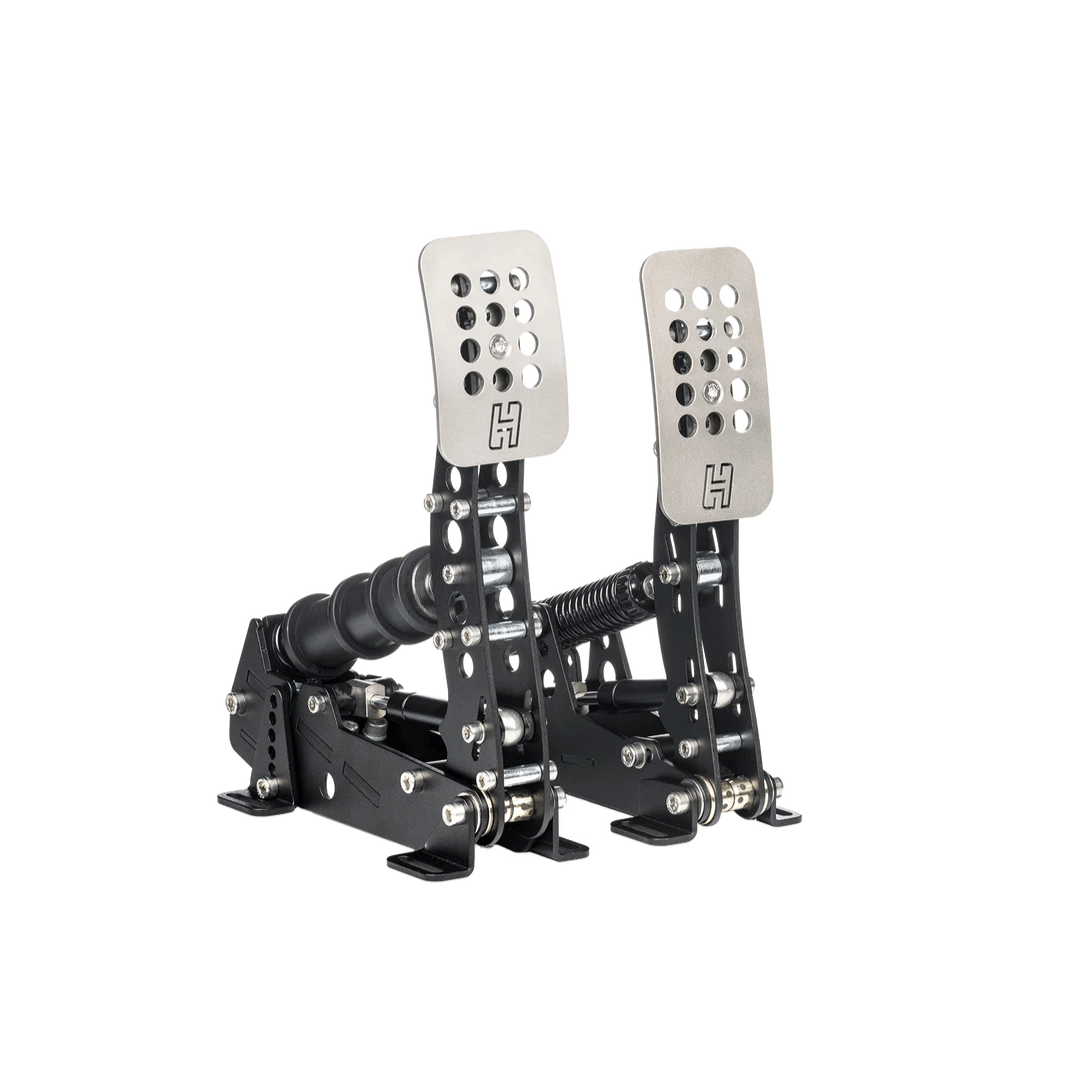

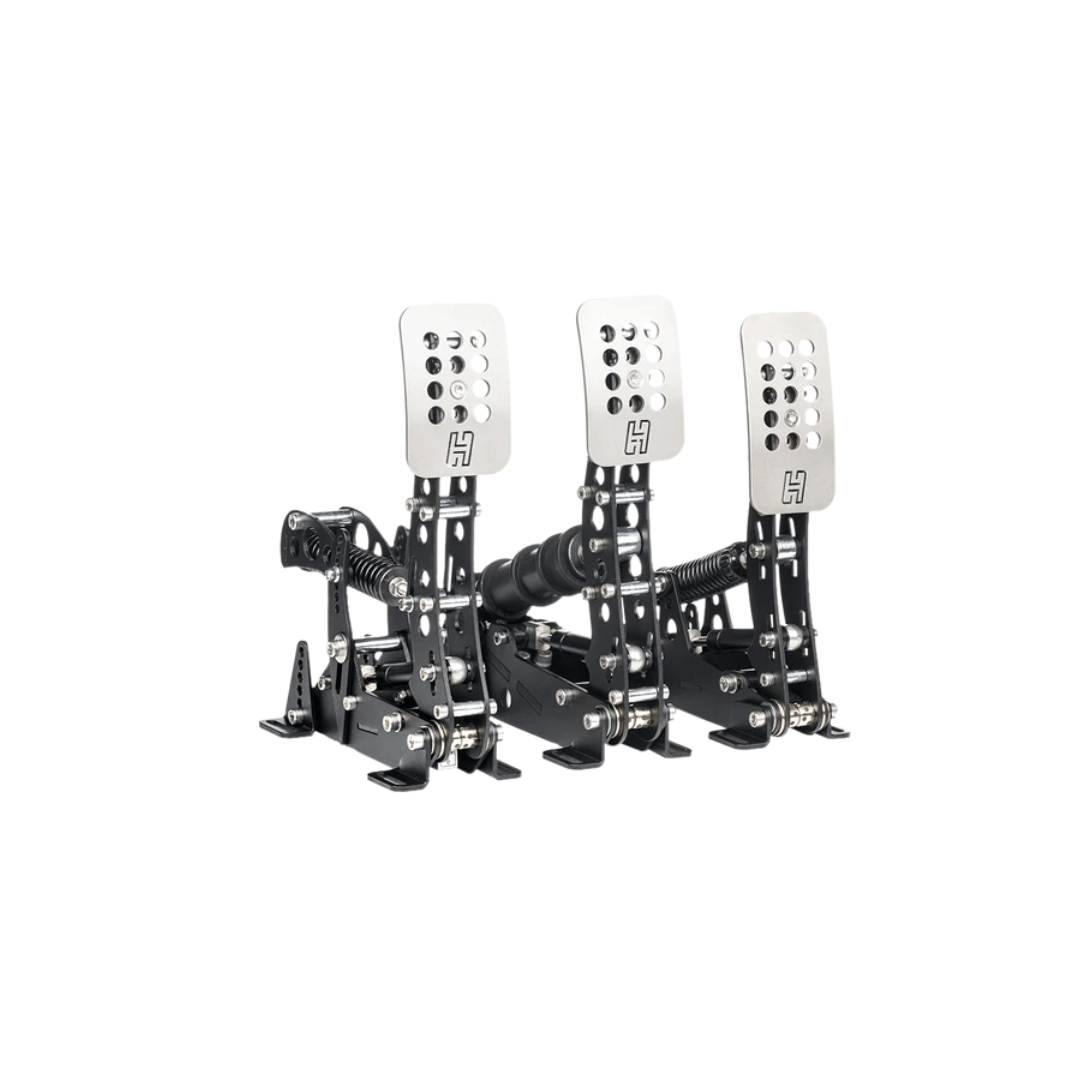

3-pedal or 2-pedal set: choose with or without the clutch
-
External SmartControl 12-bit controller: 4,096 steps per pedal
- Tumble-polished, CNC laser-cut stainless steel; travel, height and angle all adjustable
PC only (Windows 10 or newer), USB plug and play, pre-calibrated out of the box. Needs an ultra-rigid aluminium profile cockpit; the Ultimate+ Baseplate gives the best mount.
Technical specifications
- Material: CNC laser-cut stainless steel, tumble-polished
- Brake Max Force: 140 kg actual force (200 kg load cell)
- Dampening: 2-way hydraulic (brake), 1-way hydraulic (clutch, 3-pedal set)
- Electronics: external 12-bit SmartControl controller (4,096 steps/pedal)
- Adjustability: 9 interchangeable brake springs, travel, height, angle (-25° to +5°)
- Compatibility: PC only, Windows 10+, USB plug-and-play
- Requires an ultra-rigid aluminium profile cockpit
Before you order
- Requires an ultra-rigid aluminium profile cockpit. The pedals can't be used loose on the floor or on a wheel stand, even with the Ultimate+ Baseplate.
- PC only: Windows 10 or newer. Not supported on Linux, Xbox or PlayStation.
- Pre-calibrated and plug-and-play. Adjusting settings in SmartControl needs Windows 10 or newer.
- Ordered on demand from the manufacturer for you: allow 2 to 2½ weeks for delivery.
