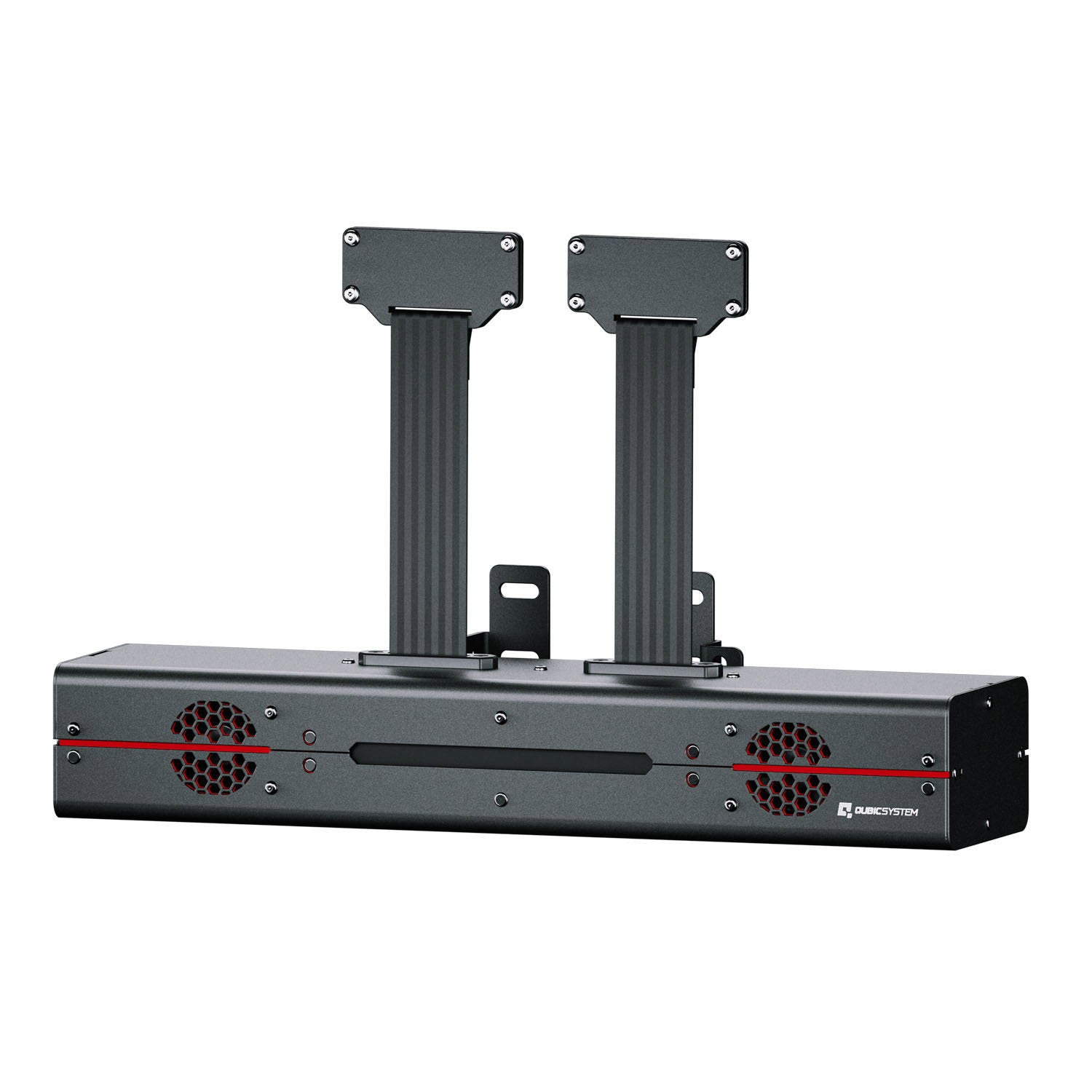

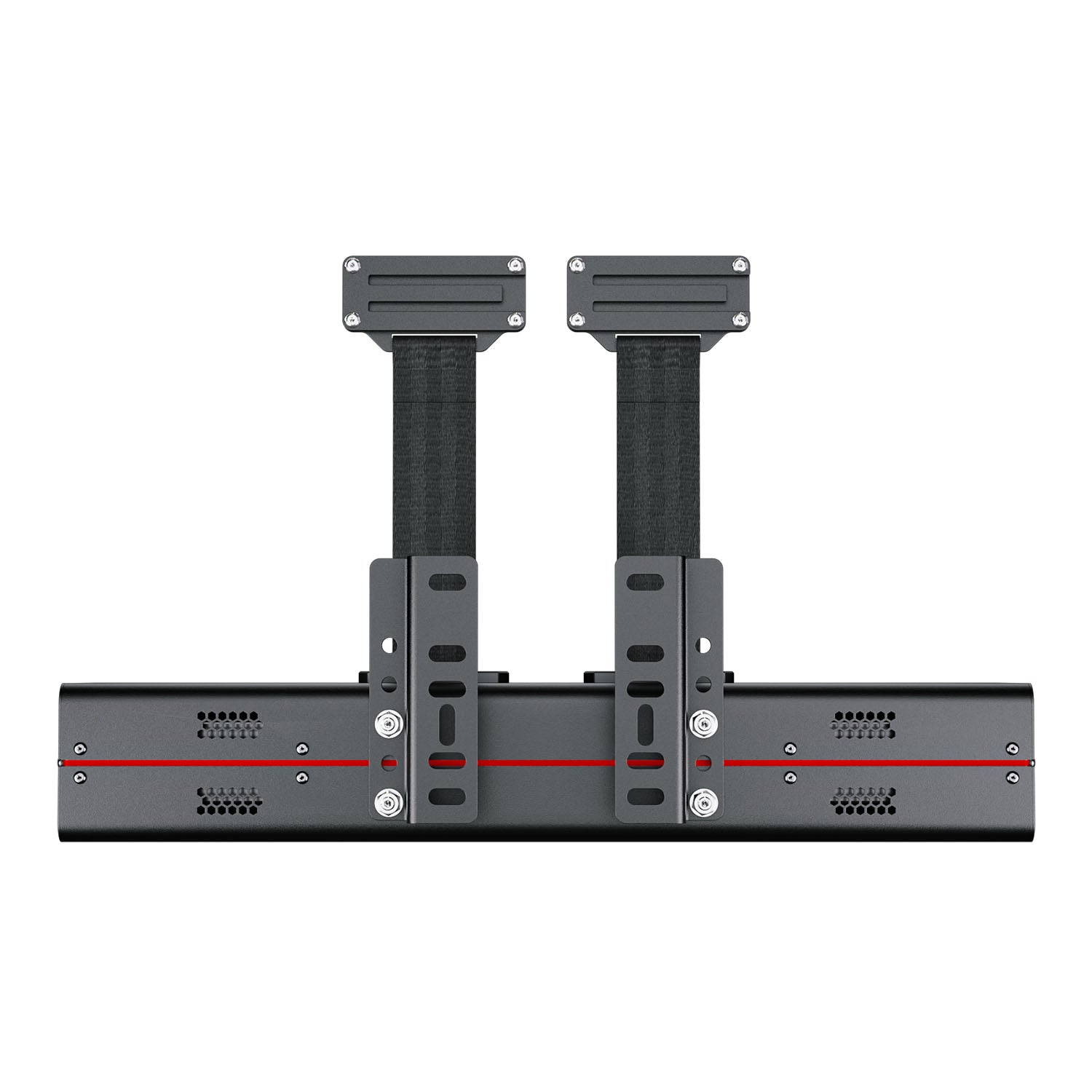

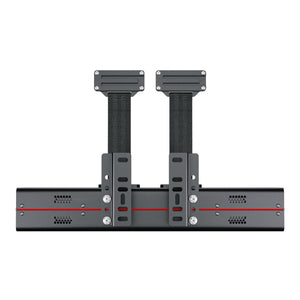

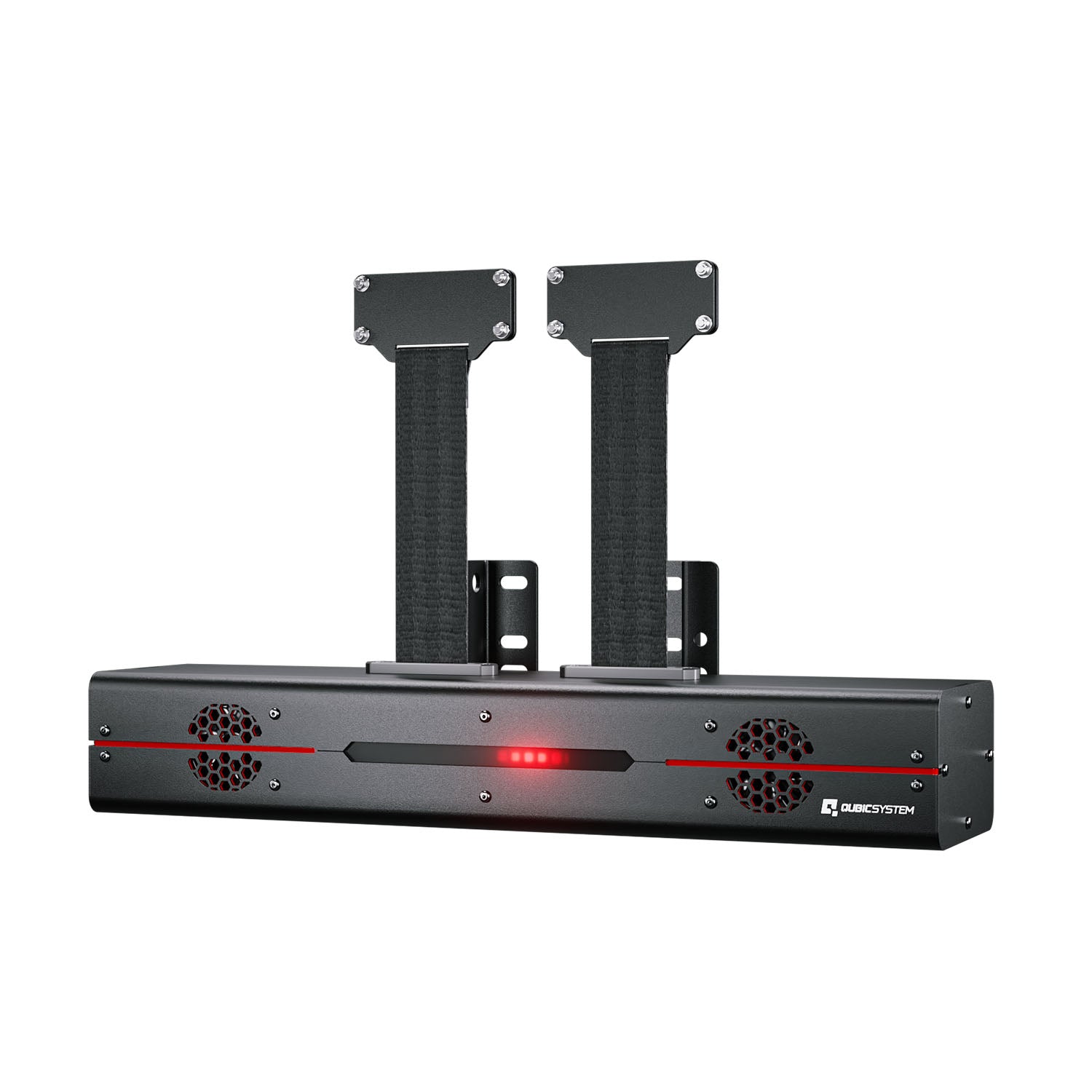

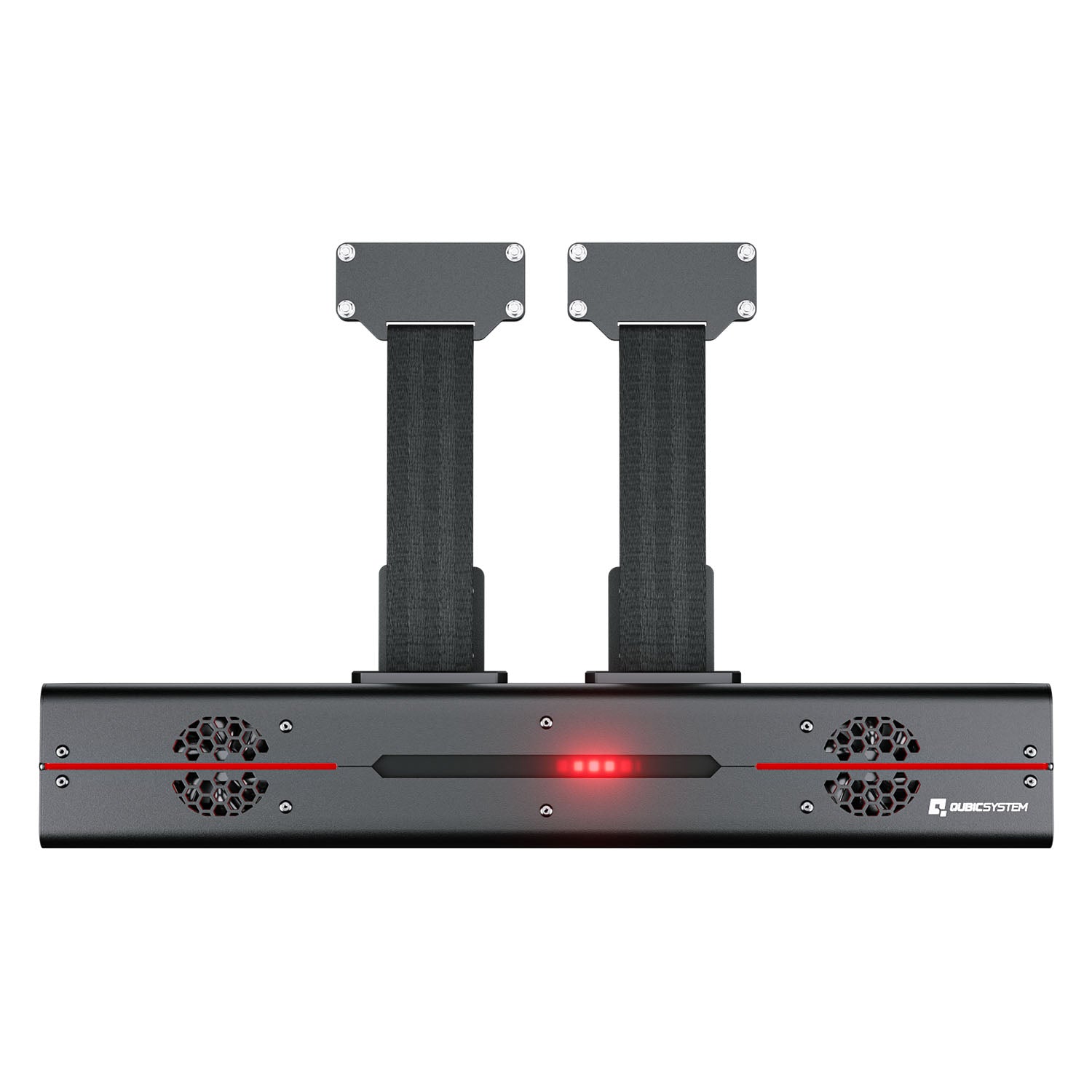

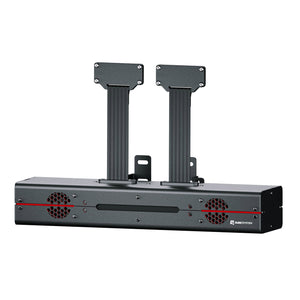

The Qubic System QS-BT1 is a dual-channel, direct drive seat belt tensioner that pulls each shoulder belt independently to recreate braking, acceleration and cornering forces. Use it on its own with any rig, or add it to a QS motion platform for the sustained G-forces motion alone can't deliver.
- 200 N (20.5 kg) of pull per channel, two independent channels
-
Effects: braking, lateral G, cornering, wheel lock, traction loss, engine vibration and gear changes
-
Near-silent: built on the same technology as the QS-220
- Universal mounting adapter for aluminium cockpits included
- Works with QS, PS and HS motion platforms, and in flight sims too
Connects to a Windows PC by USB. Seat belts and seat are sold separately.
Technical specifications
- Pulling force: 200 N (20.5 kg / 45 lbs) per channel, dual channel
- Power: 115VAC/4A or 230VAC/2A, ~321W rated
- Connectivity: USB, RGB lighting
- Computer compatibility: Windows PC
- Supported effects: depend on the game
- Main unit: 561 x 99 x 138 mm, ~12 kg
- Power supply weight: 2.8 kg
- Motion platform compatibility: QS, PS and HS platforms by Motion Systems

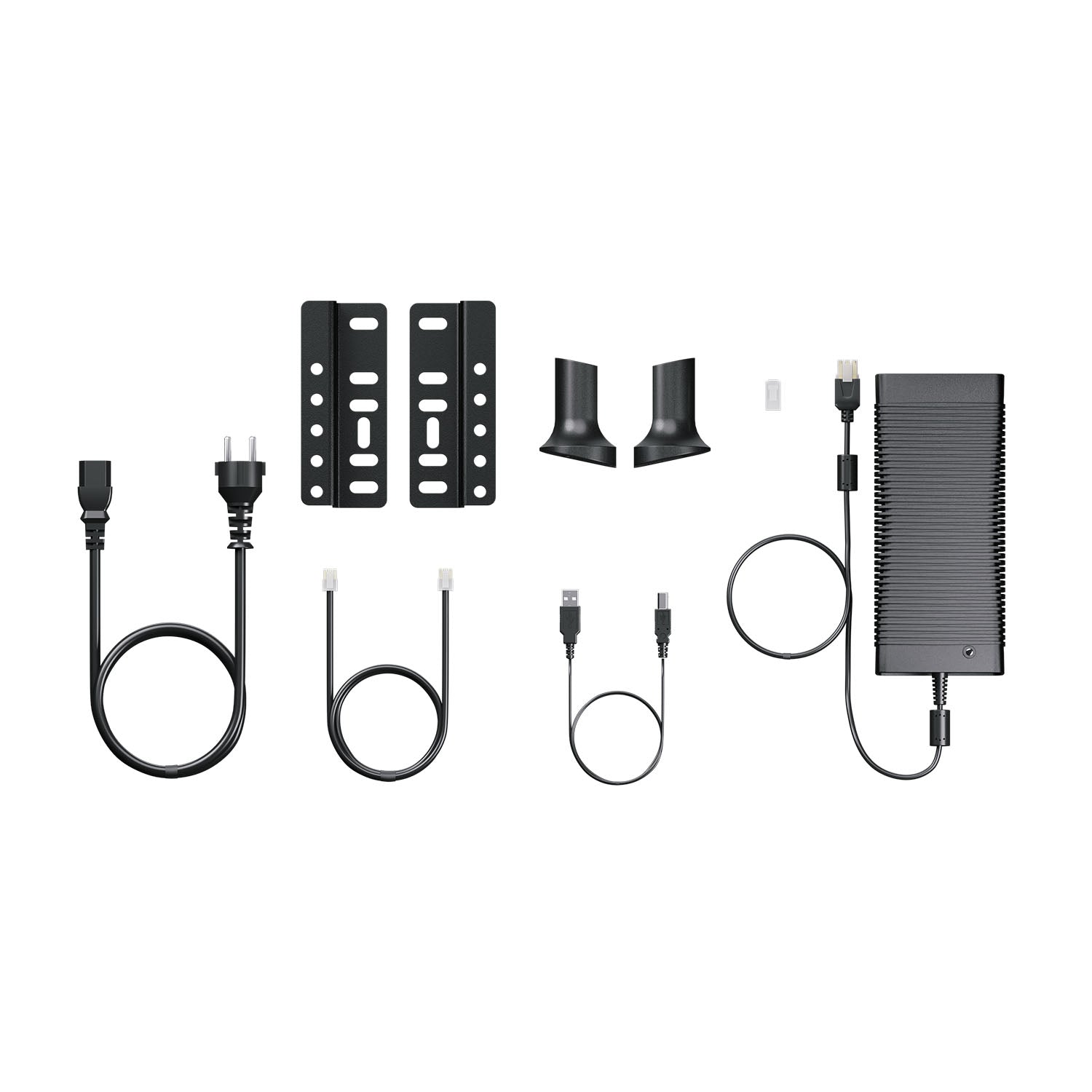

In the box
- Main unit (QS-BT1)
- USB cable
- External power supply with power cord
- 2x low-friction inserts for the seat belt slots
- Universal mounting adapter for aluminium cockpits, with hardware
- Motion-Lock jumper and interlink cable
Before you order
- Not included: seat belts, cockpit, bucket seat, the Motion-Lock remote switch and adapters for non-aluminium cockpits.

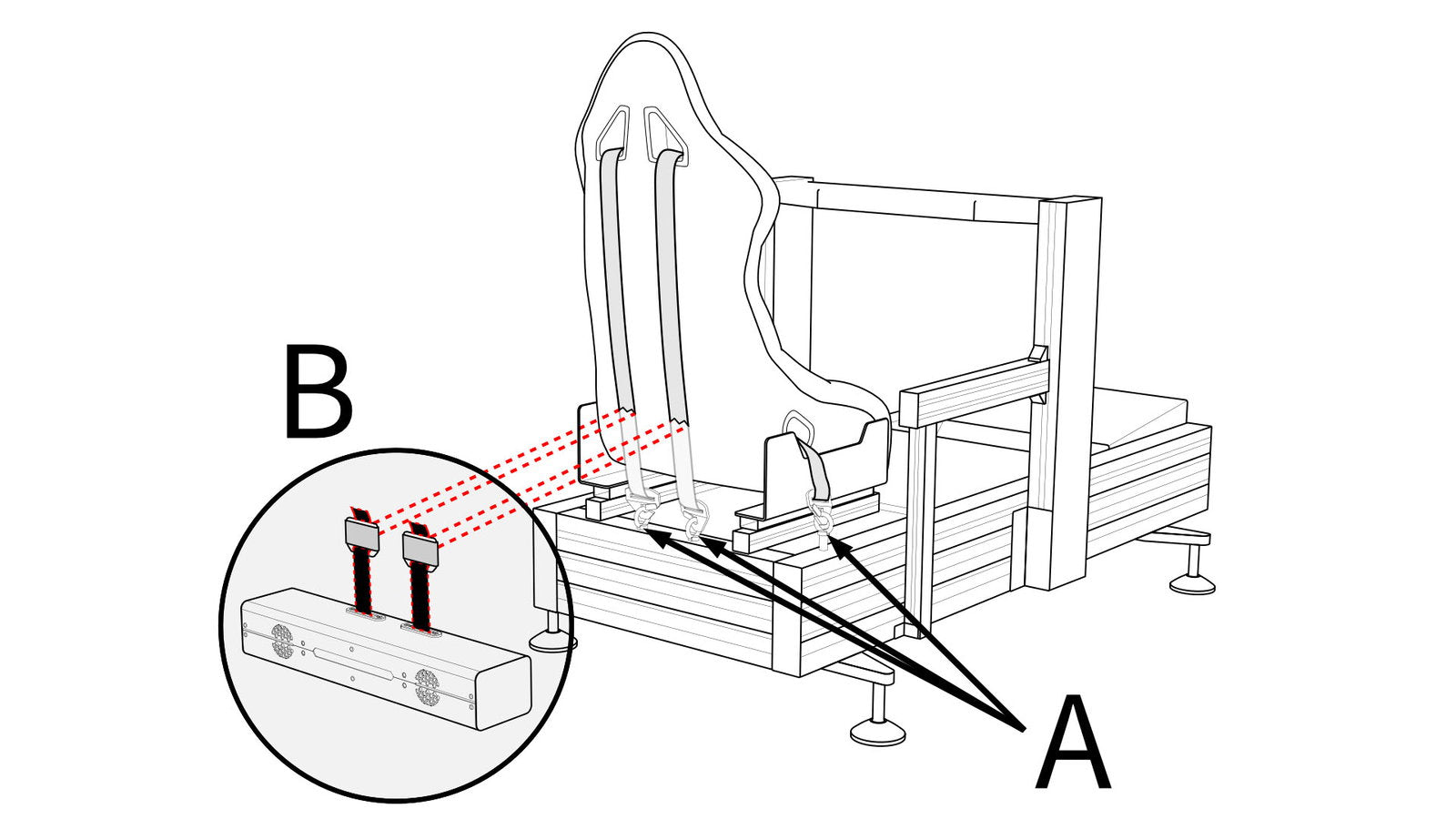

- Your seat needs harness belt slots at shoulder height for the effects to feel right.
- Windows PC only, over USB.
- With the QS-S25, QS-CH1 or QS-V20, extra mounting brackets are needed (not in the box).
- Ordered on demand from the manufacturer for you: allow 2 to 2½ weeks for delivery.
